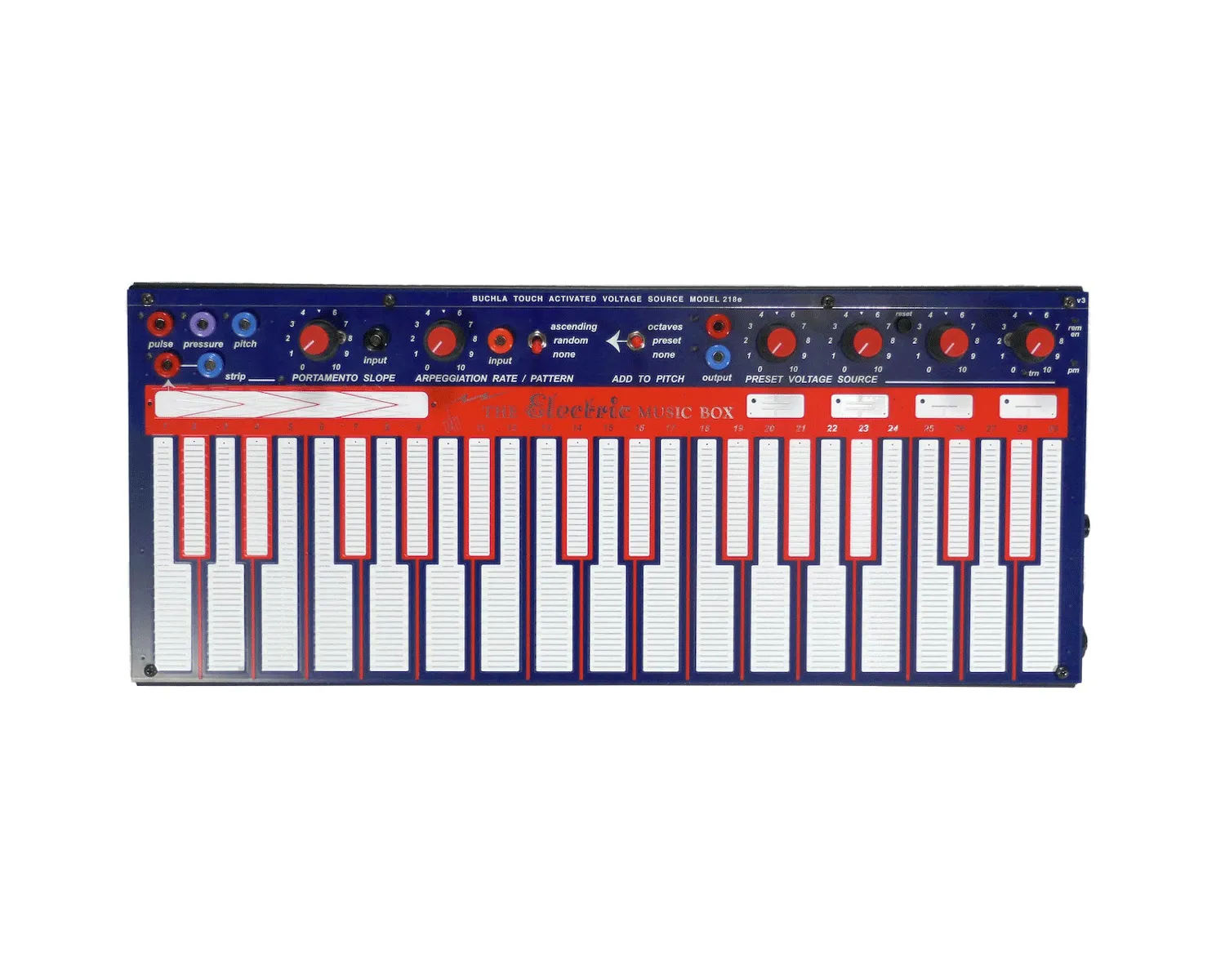

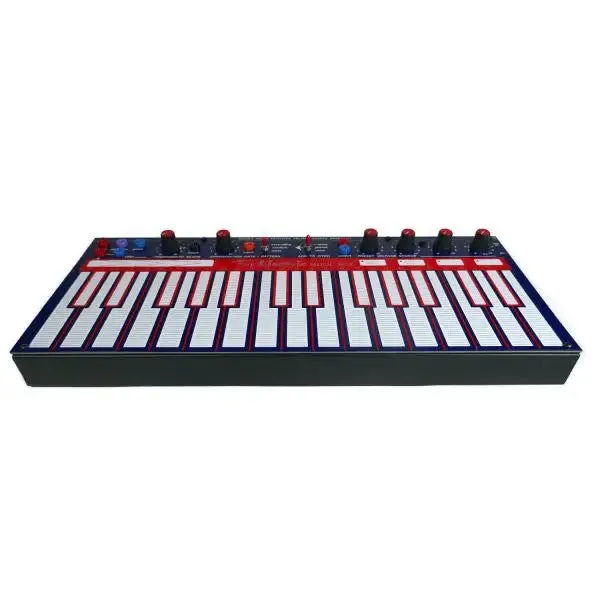

The Buchla LEM 218 v3 is more than just MIDI compatible, it gives you a unique interface to playing your existing MIDI gear and soft synths.
Each touch outputs note name, channel pressure, and velocity for every note, along with sustain controls from a pedal. Polyphonic MIDI mode lets you play chords. The touchstrip can act as a pitch bend control, or as a mod wheel for additional expressive control. Easily configured using the front panel controls, you can send notes and controls on any MIDI channel. Send the LEM some MIDI, and it gets converted to voltages and gates for eurorack and Buchla control.

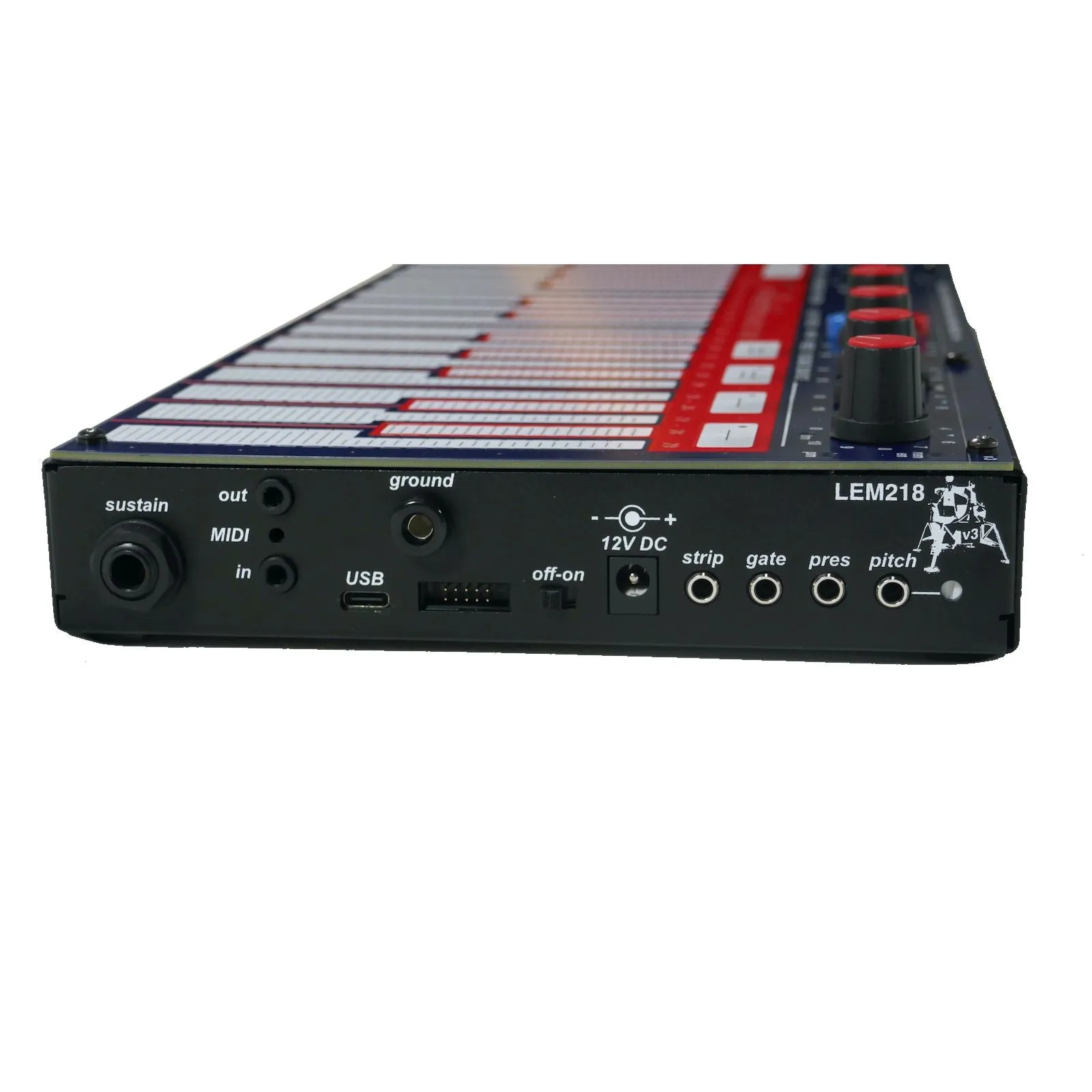

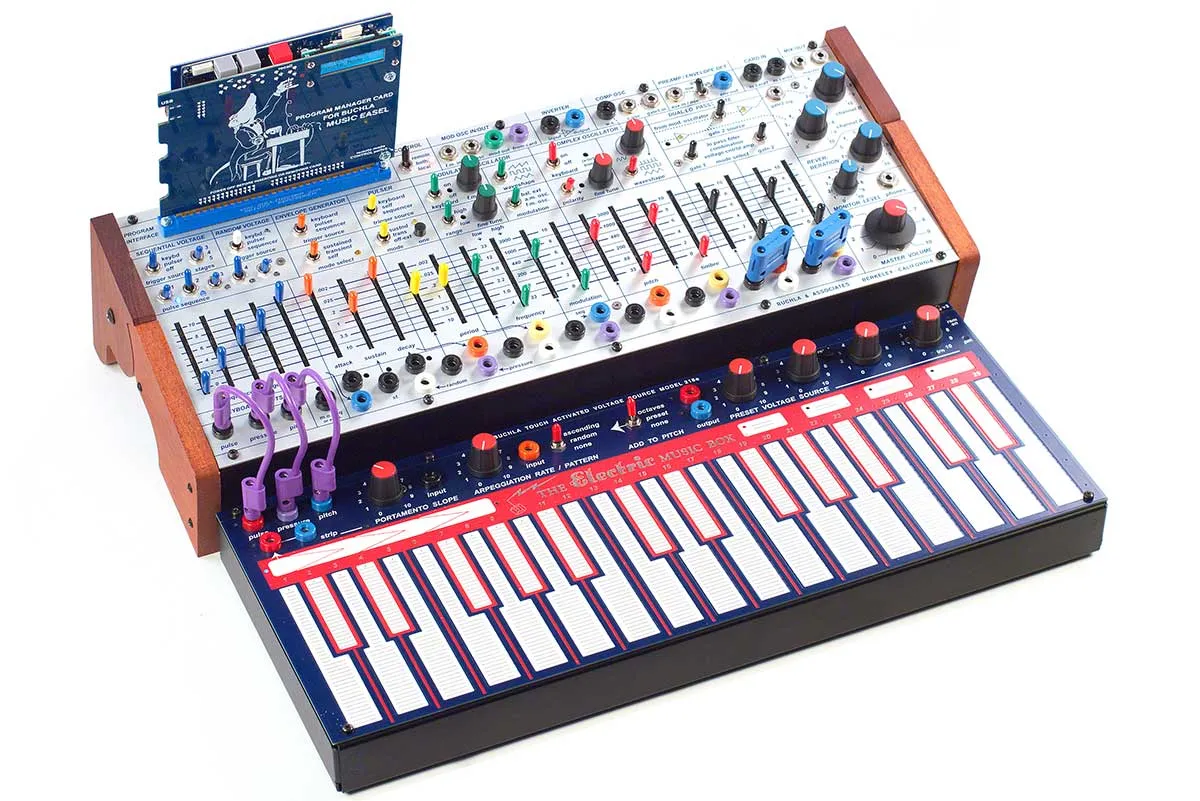

Even if you don’t own any Buchla products, the LEM 218 v3 is designed to work with your Eurorack-compatible gear. Four 3.5mm jacks output 1v/octave pitch, 0-8 volts pressure, touchstrip voltage, and gate outputs for use with Eurorack equipment. Or, combine your Eurorack with your Buchla instruments.

Arpeggiator

A pulse input allows the arpeggiator to be driven by external inputs and are allowed to interact with the automated notes to make the pattern more complex. Additional controls allow you to blend different patterns and randomness to easily change from the expected to the surprising.

Control

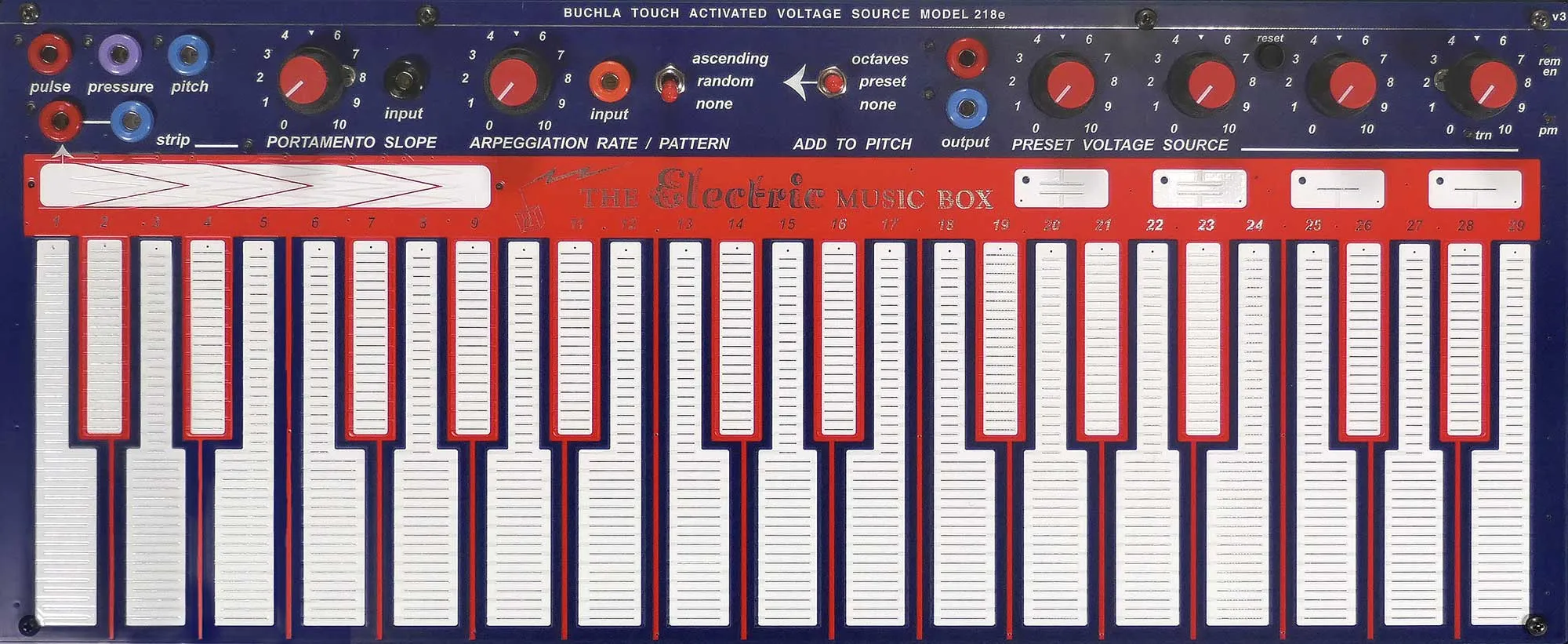

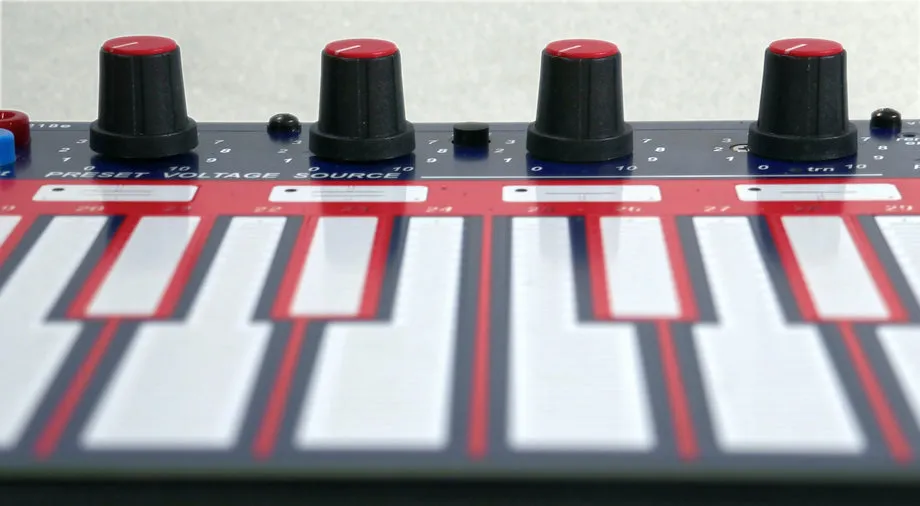

The classic preset voltage knobs offer several ways to shift your sounds into new territory. Not only can the knobs be used for quick access to voltages for your patch, they can control arpeggiation modes and octave shifting. Pads output pulses for additional control.

Set It Up Your Way

With easy front panel configuration, you can quickly customise the velocity and pressure sensitivity, MIDI channel, knob behaviour, and more. No annoying software setups, just simple settings with the keys and knobs, and you’re ready to play.

Video:

Product Specs

• Item Number: 26406
• Make:
• Model:
• Condition:
• Finish: Blue
• Categories: ⇒
• Function:
• Made In: United States
• MPN: BEMI_LEM218V3
• Modular Grid: Buchla
• Dimensions*: 4 PU

* User contributed details
